Canary Analysis Metrics: Calculating Z-Scores for Safe Deployments
Concept
Modern deployment strategies rely on Canary Deployments to reduce blast radius. A new version of a microservice (the canary) is deployed to a small fraction of the total cluster infrastructure (e.g., 5%), while the remaining nodes run the stable, existing version (the baseline). By routing a small slice of live traffic to the canary, teams can monitor telemetry for regressions before executing a full rollout.
Historically, canary analysis was performed manually by developers staring at dashboard charts, or automated using static, absolute thresholds (e.g., "rollback if error rate exceeds 1%"). However, static thresholds are highly vulnerable to system noise, diurnal traffic patterns, and environmental fluctuations. A brief external network glitch can cause a transient spike in error rates, triggering false-positive rollbacks. Conversely, a real but subtle memory leak or thread lock contention might not breach the absolute threshold until the release is fully deployed to production.
To solve this, modern canary engines (such as Netflix's Kayenta) employ statistical hypothesis testing to compare the telemetry distribution of the canary instance against the baseline instance. The baseline and canary instances run in the same environment at the same time, exposing them to identical external conditions.
The core mathematical tool for this comparison is the two-sample Z-test (or standard Z-score analysis). The Z-score measures how many standard deviations a given sample mean is from the population or baseline mean. In a two-sample comparison, we test the null hypothesis ($H_0$): the mean of the canary telemetry metric is statistically identical to the mean of the baseline telemetry metric.
The formula for the two-sample Z-test is:
$$z = \frac{\bar{X}{canary} - \bar{X}{baseline}}{\sqrt{\frac{s^2_{baseline}}{n_{baseline}} + \frac{s^2_{canary}}{n_{canary}}}}$$
Where:
- $\bar{X}$ represents the sample mean of the telemetry metrics.
- $s^2$ represents the sample variance.
- $n$ represents the number of telemetry data points collected during the evaluation window.

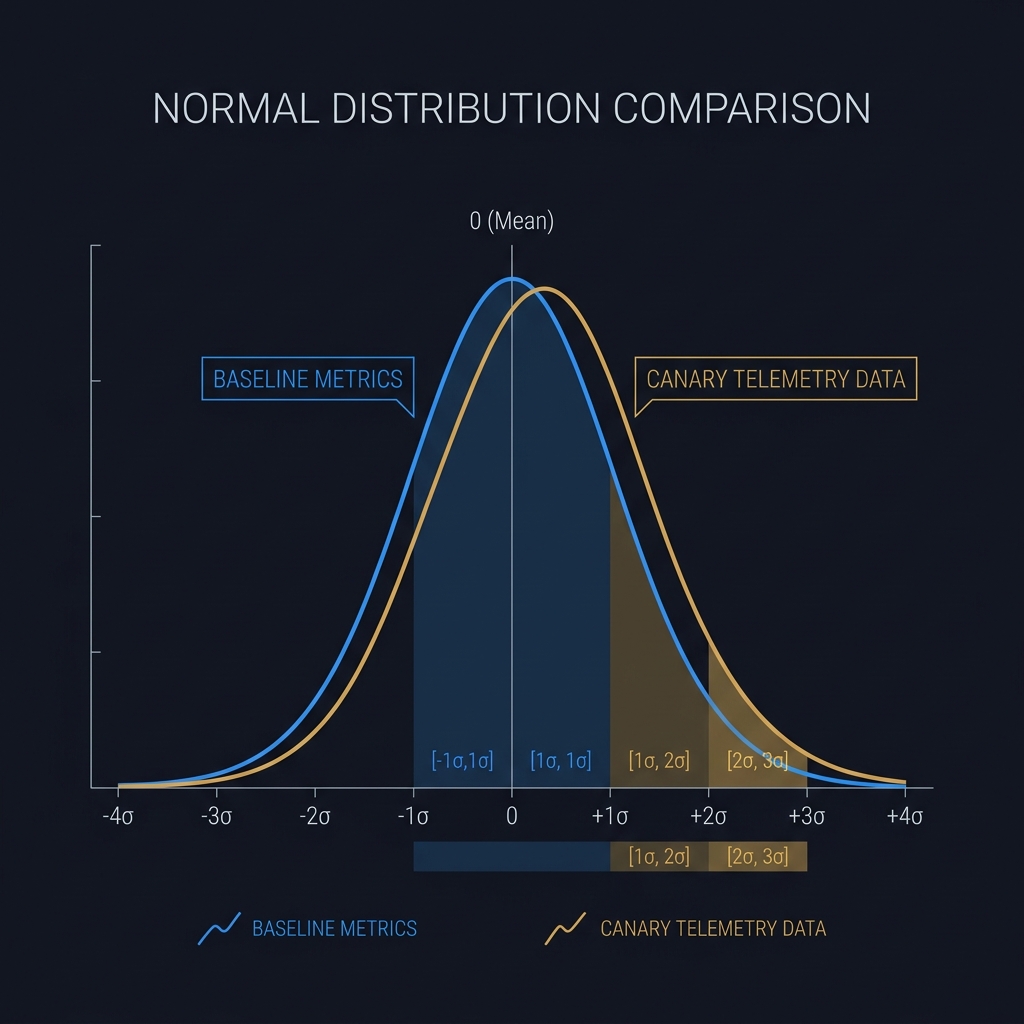

Distribution Curve Comparison:
Baseline Canary (Shifted)
┌─────────┐ ┌─────────┐
/ \ / \
/ \ / \
───────────┼───────▲───────┼───────┼───────▲───────┼───────────► Metric Value
│ │
X_baseline X_canary
◄───────── Z-Score ────────►
If the calculated absolute Z-score $|z|$ exceeds a critical value threshold (e.g., $1.96$ for a two-tailed test with a significance level $\alpha = 0.05$), we reject the null hypothesis. This indicates that the difference between the canary and baseline performance is statistically significant, signaling a regression and triggering an automated rollback.
Constraints
Integrating statistical canary analysis into CI/CD pipelines requires addressing several mathematical and execution constraints:
Latency Distribution Non-Normality
The standard Z-test assumes that the underlying data points are normally distributed. However, request latency in web services is heavily skewed, following a log-normal distribution with a long right tail (representing slow database queries, cold starts, and garbage collection pauses). Applying a Z-test directly to raw latency data produces inaccurate results. To satisfy normality assumptions, engineers must first apply a logarithmic transformation to the raw latency data points:
$$y_i = \ln(x_i)$$
Or analyze specific aggregated percentiles (e.g., P95 latency) over successive sub-intervals, which themselves follow a normal distribution due to the Central Limit Theorem.
Metric Aggregation Loss
Most modern observability platforms (like Prometheus or Datadog) store metrics in pre-aggregated formats (e.g., histogram buckets, 1-minute averages) to reduce storage costs. Computing the exact variance of a sample from pre-aggregated metrics is impossible without storing the raw, unaggregated telemetry stream. Canary engines must either hook into raw tracing data (such as OpenTelemetry spans) or implement mathematical approximations for variance from histogram buckets.
Minimum Sample Size ($n$)
For the Z-test to be statistically valid under the Central Limit Theorem, both the baseline and canary samples must contain a minimum number of observations, typically $n \ge 30$. During low-traffic periods (e.g., middle of the night), the canary may not receive enough requests to form a valid sample size within the evaluation window (e.g., 5 minutes). In these cases, the analysis window must be extended dynamically, or the engine must fall back to a Student's t-test, which is designed for smaller sample sizes but is computationally heavier.
Outlier Sensitivity
Parametric statistical metrics like the mean and variance are highly sensitive to outliers. A single network outage that causes a few requests to timeout (e.g., 30 seconds) can heavily skew the canary mean, even if 99.9% of requests are faster than the baseline. Aggregating telemetry requires outlier filtering (such as removing data points beyond 3 standard deviations from the initial median) before running the Z-test.
Trade-offs
Choosing a statistical model for automated canary analysis requires balancing mathematical rigor with computation costs and system complexity:
| Method | Statistical Rigor | Distribution Sensitivity | Performance Overhead | Minimum Sample Requirement |
|---|---|---|---|---|
| Static Threshold | Low (susceptible to noise) | None | Negligible | None |
| Two-Sample Z-Test | High (validates variance) | High (requires normal/log-normal data) | Low (simple scalar calculations) | High ($n \ge 30$) |
| Student's T-Test | High | High (requires normal data) | Moderate | Low ($n < 30$) |
| Mann-Whitney U Test | Extremely High (non-parametric) | None (handles any shape/skew) | High (requires sorting all raw samples) | Moderate |
graph TD
A[Canary Metric Analyzer] --> B{Sample Size n?}
B -- "< 30" --> C[Use Student's T-Test]
B -- ">= 30" --> D{Is distribution heavily skewed?}
D -- "Yes (e.g., Latency)" --> E[Apply Log-Transformation or Mann-Whitney U]
D -- "No (e.g., CPU/Memory)" --> F[Apply Two-Sample Z-Test]
F --> G[Calculate Means & Variances]
G --> H[Calculate Z-Score]
H --> I{Is |z| > Z-Critical?}
I -- Yes --> J[Status: Degradation. Rollback Deployment]
I -- No --> K[Status: Healthy. Continue Rollout]
Code
Below is a production-ready C# implementation of a Canary Analyzer Engine. It accepts arrays of raw telemetry observations (e.g., response latencies), applies a log-transformation to normalize the skewed distribution, calculates the two-sample Z-score, and evaluates whether the canary is degraded relative to a significance threshold of $\alpha = 0.05$.
using System;
using System.Linq;
namespace CanaryAnalysis
{
public class CanaryResult
{
public bool IsDegraded { get; set; }
public double ZScore { get; set; }
public double BaselineMean { get; set; }
public double CanaryMean { get; set; }
public string Message { get; set; } = string.Empty;
}
public class CanaryStatisticsEngine
{
private const double Z_CRITICAL_ALPHA_05 = 1.96; // Two-tailed test critical value at 95% confidence level
/// <summary>
/// Analyzes latency telemetry between baseline and canary instances using a two-sample Z-test.
/// Performs log-transformation to normalize raw latency data.
/// </summary>
public CanaryResult AnalyzeLatency(double[] baselineData, double[] canaryData)
{
if (baselineData.Length < 30 || canaryData.Length < 30)
{
return new CanaryResult
{
IsDegraded = false,
ZScore = 0.0,
Message = $"Insufficient sample size. Baseline count: {baselineData.Length}, Canary count: {canaryData.Length}. Minimum 30 required."
};
}
// Apply natural log transformation to normalize latency distributions
double[] logBaseline = baselineData.Select(x => Math.Log(x)).ToArray();
double[] logCanary = canaryData.Select(x => Math.Log(x)).ToArray();
// Calculate sample statistics on log-transformed data
var (meanBaseline, varianceBaseline) = CalculateMeanAndVariance(logBaseline);
var (meanCanary, varianceCanary) = CalculateMeanAndVariance(logCanary);
// Compute two-sample Z-score
double denominator = Math.Sqrt((varianceBaseline / logBaseline.Length) + (varianceCanary / logCanary.Length));
if (denominator < 1e-9)
{
return new CanaryResult
{
IsDegraded = false,
ZScore = 0.0,
Message = "Variance is near zero. Telemetry streams are identical."
};
}
// We subtract baseline from canary so a positive Z-score indicates Canary latency is higher (worse)
double zScore = (meanCanary - meanBaseline) / denominator;
// Convert means back to milliseconds (exponential of log-mean corresponds to geometric mean of raw data)
double rawBaselineGeoMean = Math.Exp(meanBaseline);
double rawCanaryGeoMean = Math.Exp(meanCanary);
bool isDegraded = zScore > Z_CRITICAL_ALPHA_05;
return new CanaryResult
{
IsDegraded = isDegraded,
ZScore = zScore,
BaselineMean = rawBaselineGeoMean,
CanaryMean = rawCanaryGeoMean,
Message = isDegraded
? $"Canary degradation detected! Z-score: {zScore:F4} exceeds critical threshold {Z_CRITICAL_ALPHA_05}. Raw Geo-Mean: Baseline={rawBaselineGeoMean:F2}ms, Canary={rawCanaryGeoMean:F2}ms."
: $"Canary healthy. Z-score: {zScore:F4} is within acceptable limits. Raw Geo-Mean: Baseline={rawBaselineGeoMean:F2}ms, Canary={rawCanaryGeoMean:F2}ms."
};
}
private static (double Mean, double Variance) CalculateMeanAndVariance(double[] data)
{
double mean = data.Average();
// Welford's algorithm or standard formula for sample variance (unbiased, using N-1)
double sumOfSquares = data.Sum(val => Math.Pow(val - mean, 2));
double variance = sumOfSquares / (data.Length - 1);
return (mean, variance);
}
}
}
